FY-3E Satellite
Description
- 5th flight unit of the FY-3 series.
- Main mission: operational meteorology.
- Substantial contribution to ocean and ice monitoring, climate monitoring.
- Significant contribution to atmospheric chemistry and space weather.
| Orbit | Sunsynchronous orbit |
|---|---|
| Altitude | 831 km |
| ECT | 05:30 desc |
| Dry mass | 2300 kg |
| Power | 2500 W |
| Launch | 2021-07-05 |
| End of service | ≥2026 |
Instruments
| Picture | Acronym | Full name | No. Bands |
|---|---|---|---|
|
MERSI-LL | Medium Resolution Spectral Imager-LL | 7 |
|
HIRAS-II | Hyperspectral Infrared Atmospheric Sounder-II | 3053 |
|

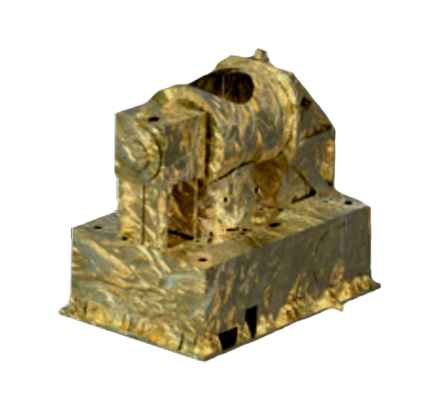

MWTS-III | Micro-Wave Temperature Sounder-III | 17 |
|

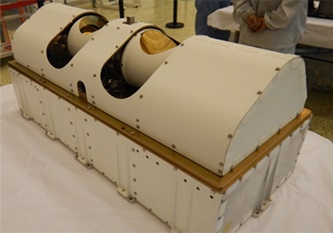

MWHS-II | Micro-Wave Humidity Sounder-II | 15 |
|
GNOS-II | GNSS Radio Occultation Sounder-II | 50 |
|
WindRAD | Wind Radar | 4 |
|
SSIM | Solar Spectral Irradiance Monitor | 4345 |
|
SIM-II | Solar Irradiance Monitor-II | 3 |
|

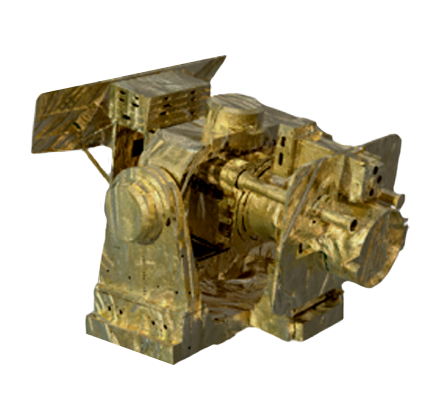

X-EUVI | Solar X-ray and Extreme Ultraviolet Imager | 8 |
|
Tri-IPM | Triple-angle Ionospheric PhotoMeter | 6 |
| SEM | Space Environment Monitor | 421 |
Products
| Instrument | Datasets |
|---|---|
| MERSI-LL | L1 data, L2L3 product |
| HIRAS-II | L1 data |
| MWTS-III | L1 data, L2L3 product |
| MWHS-II | L1 data, L2L3 product |
| GNOS-II | L1 data, L2L3 product |
| WindRAD | L1 data, L2L3 product |
| SSIM | L1 data |
| SIM-II | L1 data |
| X-EUVI | L2L3 product |
| Tri-IPM | L1 data |
| SEM | L1 data, L2L3 product |
Gallery
FY-3E
